Smart Switch Board

Conceptualized and Designed a ESP32 based Smart Switchboard. The final design was a product of multiple considerations ensuring ease of use and multiple possible integrations with the help of various sensors. The board houses LEDs to relay the status of the device and also include push buttons that ensure you can operate your lights even in the absence of an internet connection.

The board houses the following Sensors

• Light Sensor (LDR)
• Proximity Sensor (Passive IR: HC-SR501)
• Temperature Sensor (DHT22)

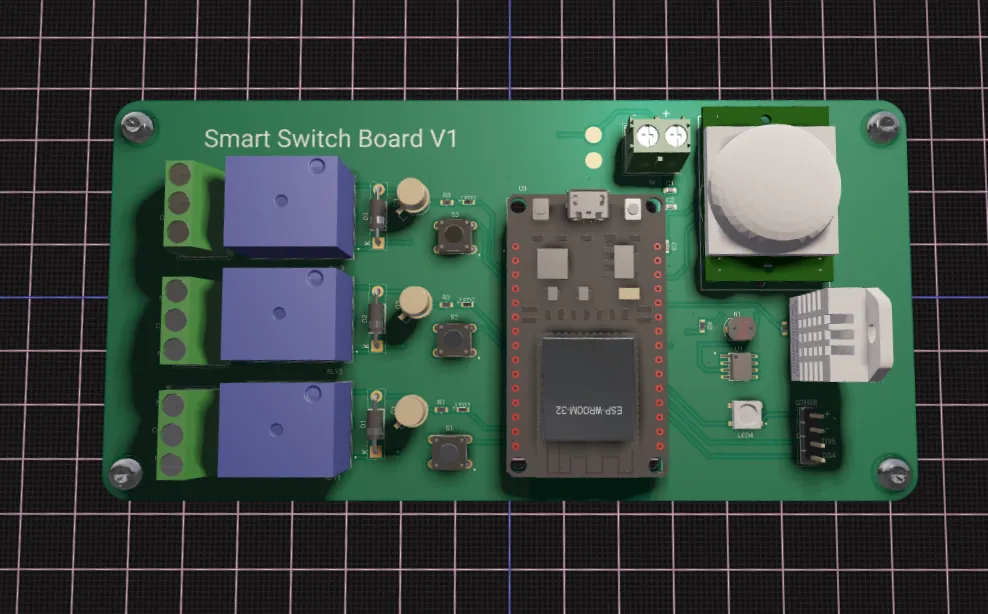

CAD Visualization

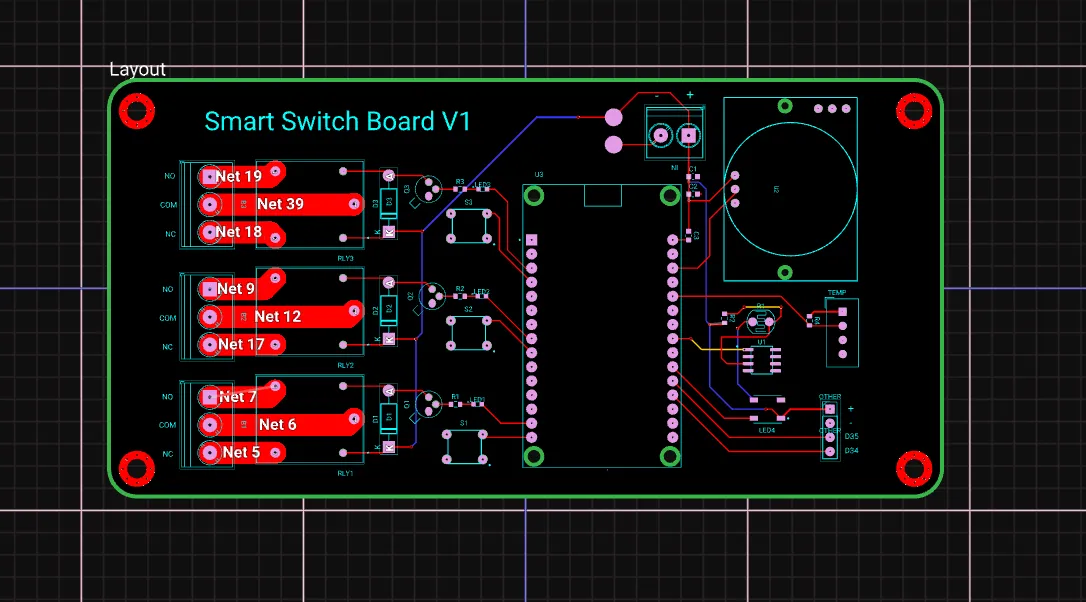

PCB Design of the Board
